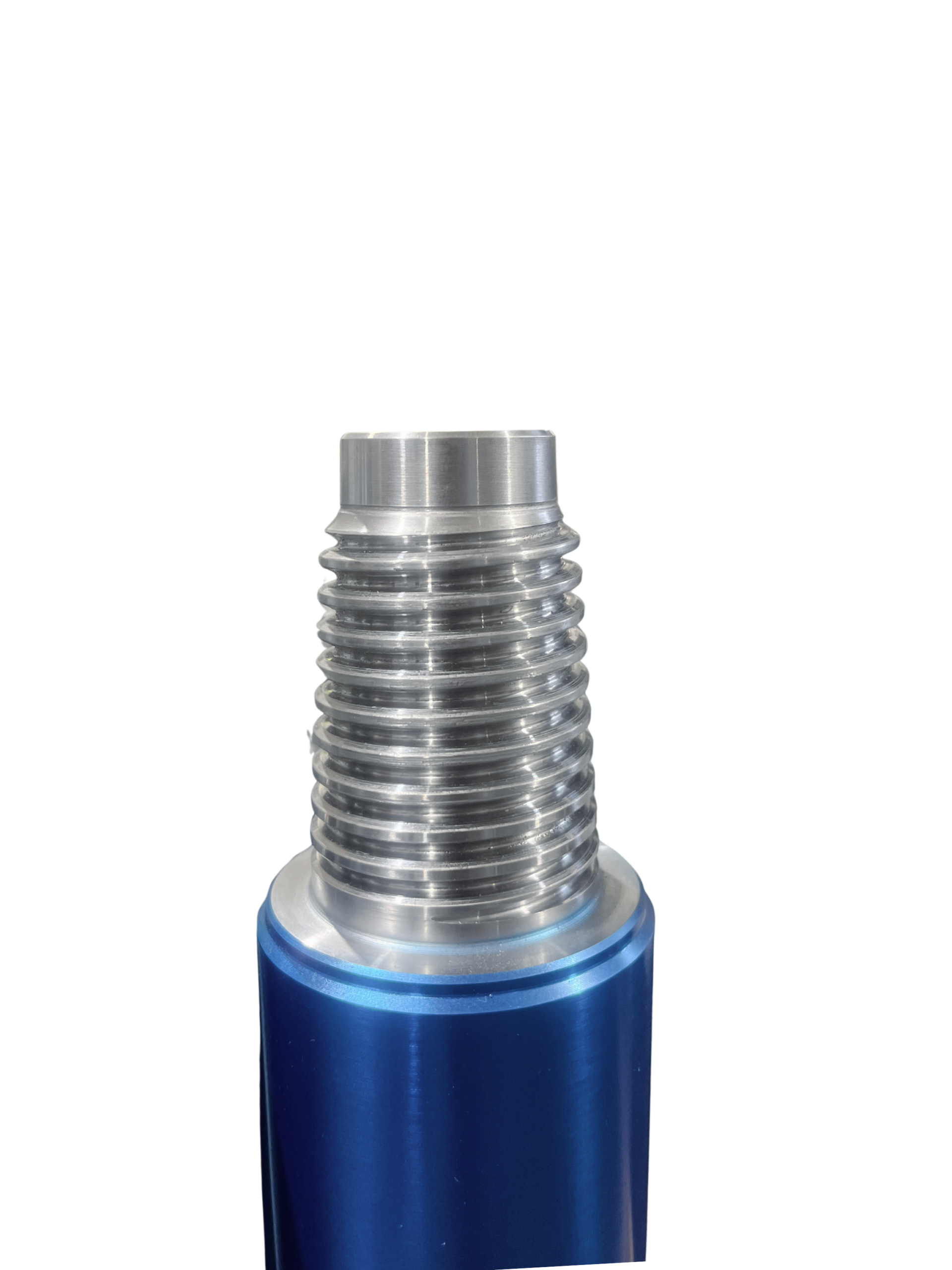

High-quality HDD drill pipe designed for Ditch Witch JT25 / JT2720M1 / JT30 / D24x40. Sourced to meet the exact specifications required by your rig for reliable performance in demanding horizontal directional drilling operations.

⚙️ Specifications

• Machine Compatibility: Ditch Witch JT25 / JT2720M1 / JT30 / D24x40
• Outer Diameter (OD): 2.75 in (6.99 cm)
• Thread / Connection: 2.11 / #600
• Rod Length: 10 ft (3 m)
• Minimum Bend Radius: 123 ft (37.5 m)
• Brand Compatibility: Ditch Witch
• Material: High-strength alloy steel
• Application: Horizontal Directional Drilling (HDD)

📋 Compatibility Notes

Pipe body: 2.75″ x tool joint: 2.38″. Thread designation: 2.11. Compatible with JT25, JT2720M1, JT30, and cross-compatible with Vermeer D24x40 using #600 adapter. Available in Power Pipe HD Fluid Miser II and Forged HD versions.

🔧 What Is a Saver Sub?

A saver sub (also called a sub saver) is a sacrificial wear component that threads between the drive chuck and the drill pipe. It protects the drive chuck threads from wear during normal drilling operations. Always replace your saver sub when changing drill pipe — a worn saver sub will accelerate wear on your drive chuck and can cause costly damage. Saver subs should be checked regularly and replaced as needed.

❓ Not Sure Which Pipe to Order?

Contact us with your rig make, model, series, and serial number and we’ll confirm the correct thread and OD before you order. Ordering the wrong thread can result in damaged connections and downtime.
