High-quality HDD drill pipe designed for Ditch Witch D36x50 / Vermeer D36x50 / D36x50 S2 / D40x55 S3. Sourced to meet the exact specifications required by your rig for reliable performance in demanding horizontal directional drilling operations.

⚙️ Specifications

• Machine Compatibility: Ditch Witch D36x50 / Vermeer D36x50 / D36x50 S2 / D40x55 S3
• Outer Diameter (OD): 2.625 in (6.67 cm)

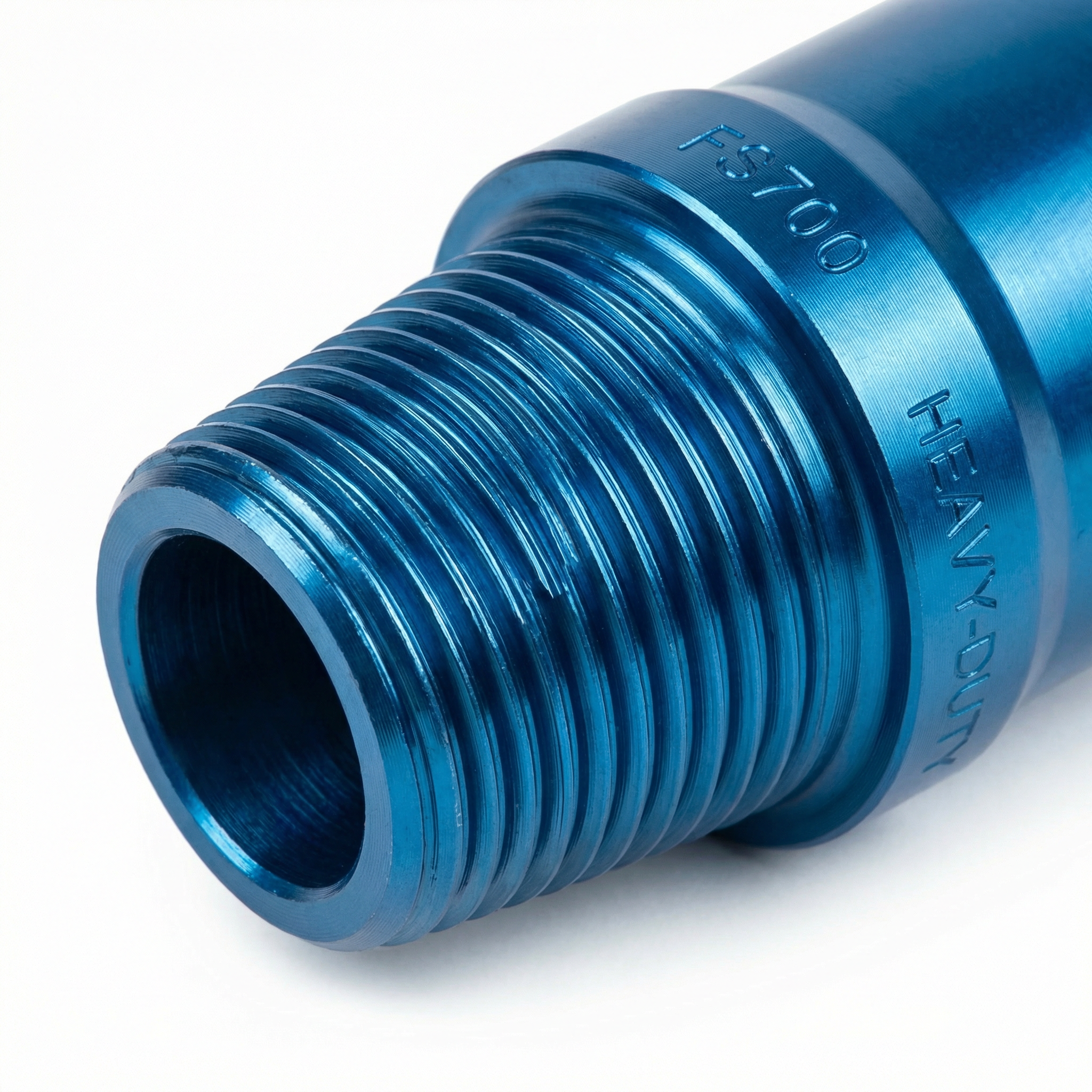

• Thread / Connection: FST #700 / #650
• Rod Length: 15 ft (4.6 m)
• Minimum Bend Radius: 145 ft (44.2 m)
• Brand Compatibility: Vermeer / Ditch Witch
• Material: High-strength alloy steel
• Application: Horizontal Directional Drilling (HDD)

📋 Compatibility Notes

The D36x50 can use either FST #650 (2.375″ OD) or FST #700 (2.625″ OD) depending on configuration. This listing is for the 2.625″ #700 rod. The Ditch Witch D36x50 uses #700 thread (2.63″ x 3.10″ pipe body x tool joint).

🔧 What Is a Saver Sub?

A saver sub (also called a sub saver) is a sacrificial wear component that threads between the drive chuck and the drill pipe. It protects the drive chuck threads from wear during normal drilling operations. Always replace your saver sub when changing drill pipe — a worn saver sub will accelerate wear on your drive chuck and can cause costly damage. Saver subs should be checked regularly and replaced as needed.

❓ Not Sure Which Pipe to Order?

Contact us with your rig make, model, series, and serial number and we’ll confirm the correct thread and OD before you order. Ordering the wrong thread can result in damaged connections and downtime.
