Trailer & towing parts

Reel Trailers & Jobsite Towing Parts

Reel trailer configurations, heavy-duty trailer specs, hitch pins, towing adapters, binders, hooks, wheel chocks, and trailer jacks for HDD, fiber, utility, and construction work.

Shop Trailer Parts View Trailer Specs

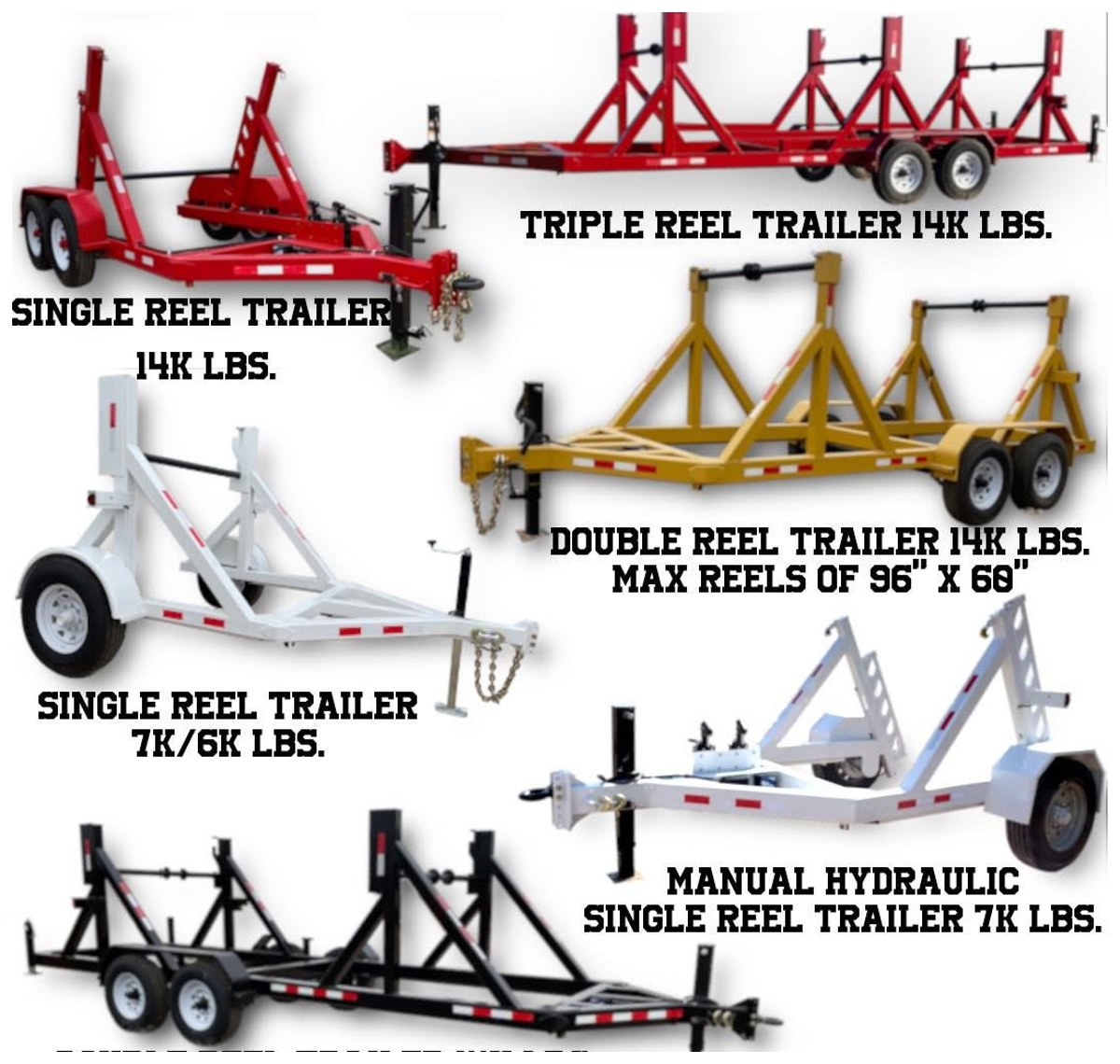

Reel trailer style guide with single, double, triple, and hydraulic reel trailers

Reel Trailer Styles We Handle

Common reel trailer configurations for HDD, utility, fiber, and cable work. Final specs, availability, color, axle setup, and lead time are confirmed before quote.

Quote required

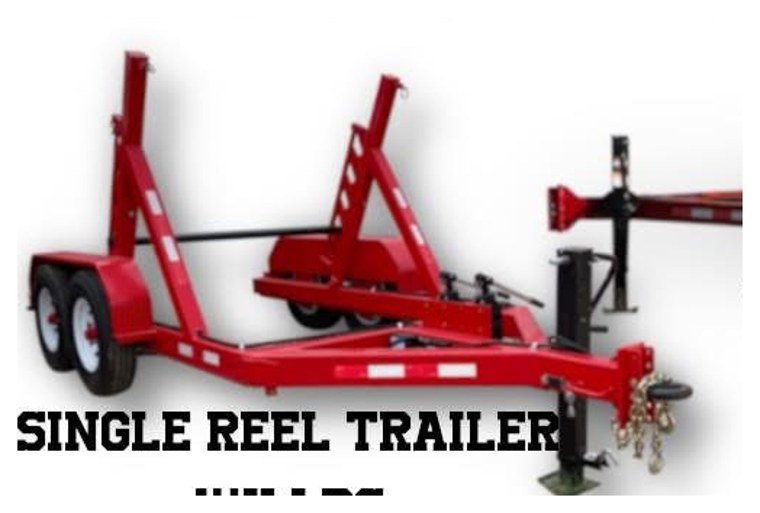

Hydraulic 14KHydraulic Single Reel Trailer 14K

Hydraulic reel trailer in the 14K class for heavier reel handling and jobsite transport.

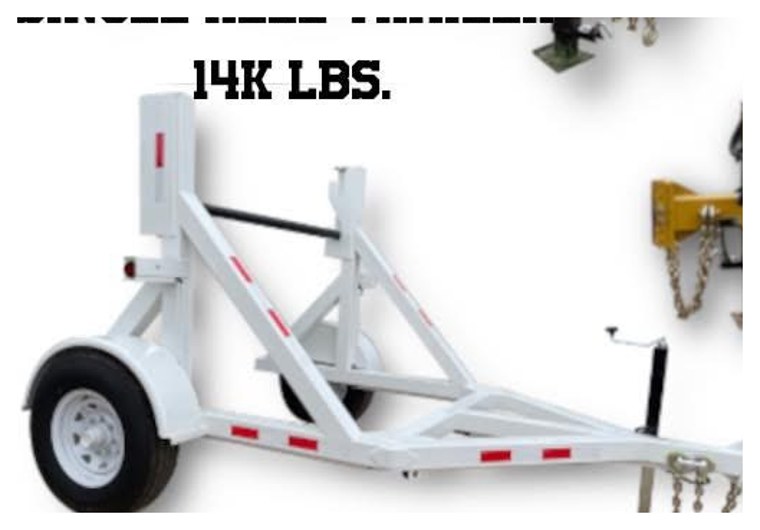

Single reelSingle Reel Trailer 7K / 6K

Compact single-reel configuration for lighter reel transport and tight jobsite use.

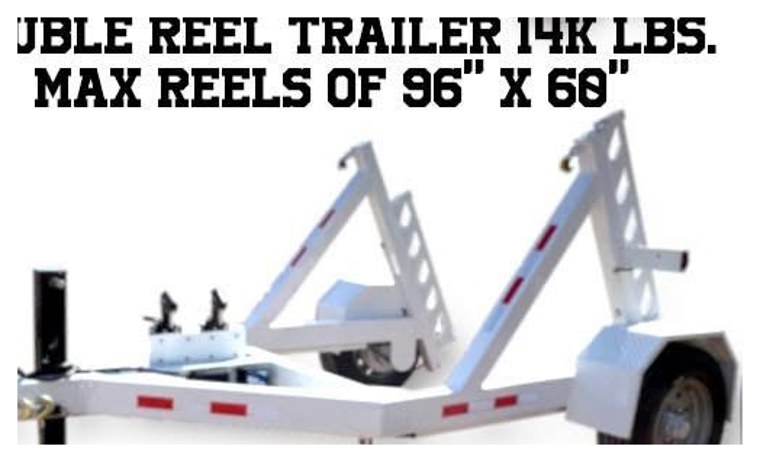

HydraulicManual Hydraulic Single Reel Trailer 7K

Manual hydraulic lift style for easier loading, unloading, and reel positioning.

EZ LOAD 5KEZ LOAD 5K Reel Trailer

Compact EZ LOAD reel trailer in the 5K class for lighter reel handling and jobsite transport.

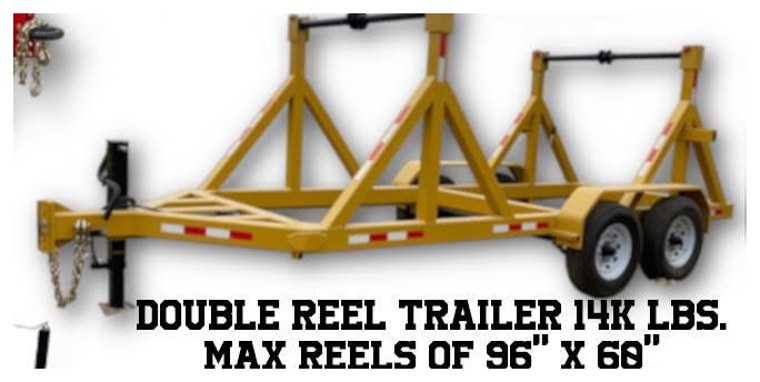

Double reelDouble Reel Trailer 14K – 96 x 60

Double-reel configuration with max reel fit up to 96 in x 60 in, depending on build.

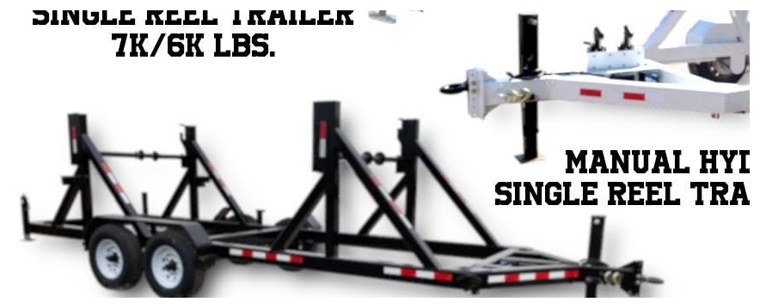

Double reelDouble Reel Trailer 14K – 120 x 60

Longer double-reel style for larger reel requirements and fleet work.

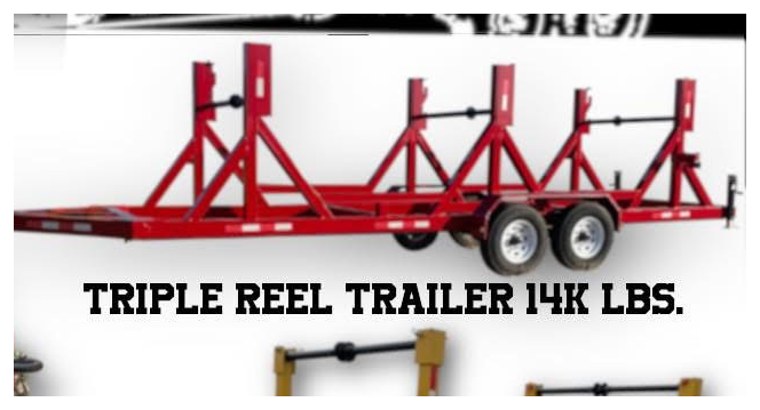

Triple reelTriple Reel Trailer 14K

Three-reel layout for multiple reels, field crews, and larger cable or conduit handling jobs.

EZ LOADEZ LOAD-63 Reel Trailer

Confirmed EZ LOAD-63 configuration with 60 in x 96 in reel capacity and 6K axle class.

Model & Specification Guide

Public model guide based on internal trailer specification sheets and verified sales history. Customer information, pricing, VIN/serial details, and private paperwork are kept internal.

DR-64Reel trailer

Heavy-duty reel trailer for HDD, duct, fiber, and cable reel transport.

14K GVWR class, 24 ft overall length, 96 in width, reel capacity listed as 61 in x 120 in with 2.5 in solid bar.

Electric brakes, ST235/80 R16 tires, 3 in adjustable lunette/eye/pintle hitch, 12K drop-leg jack, LED lights, 3/8 in Grade 70 safety chains, approx. 2,100 lb trailer weight and 11,900 lb payload.

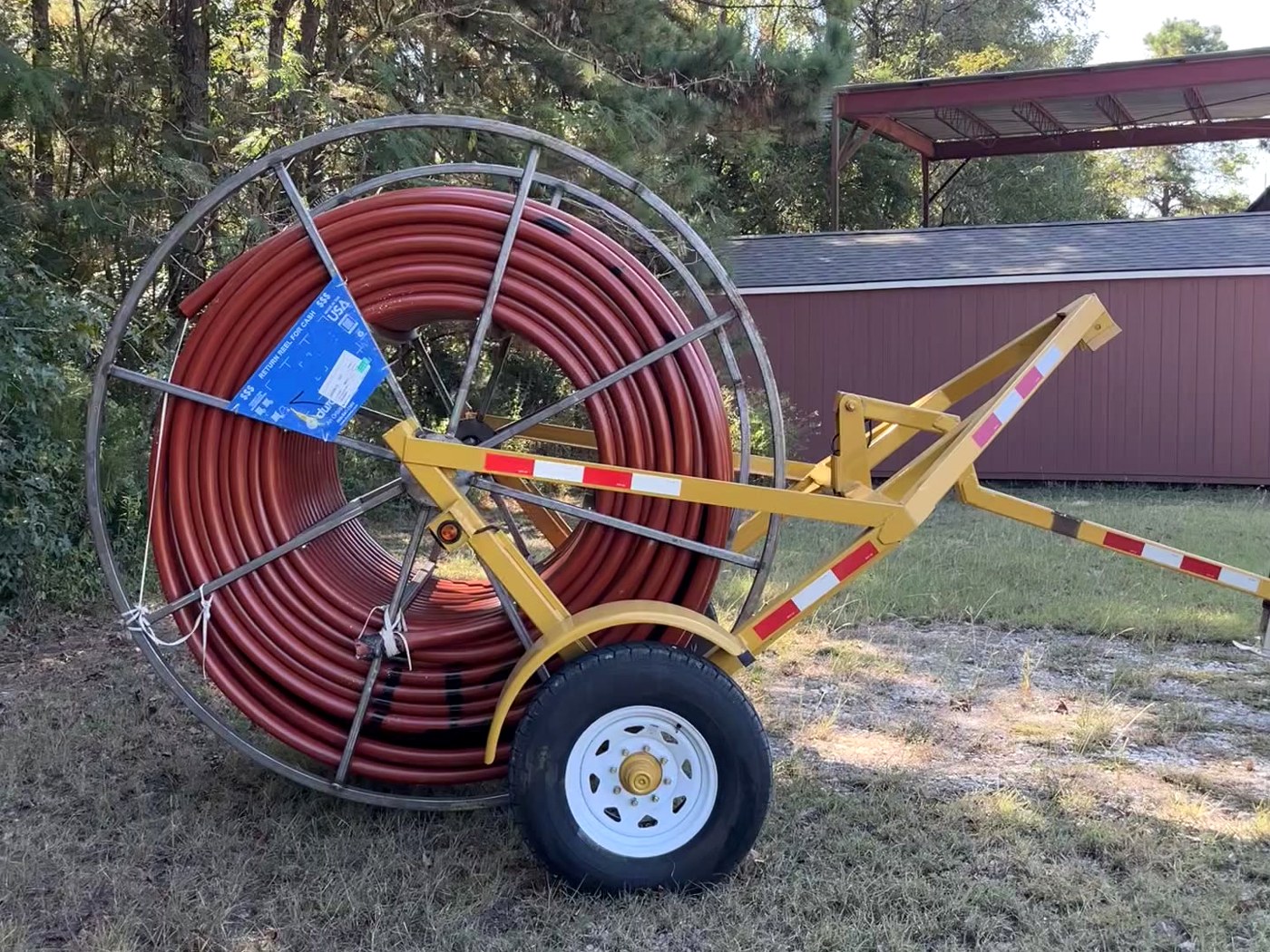

EZ LOAD-63Reel trailer

EZ LOAD reel trailer configuration for compact reel handling and jobsite transport.

60 in x 96 in reel capacity, 150 in overall length, 90 in width, 24 in reel diameter at lowest position.

6,000 lb axle class, ST235/80 R16 tires, 3 in adjustable lunette eye/pintle hitch, 7K drop-leg jack, LED lights, 3/8 in safety chains, approx. 750 lb trailer weight and 5,250 lb payload.

R-44Regular reel trailer

Regular heavy-duty reel-style trailer for pipe, solid bar, cable, or equipment hauling.

61 in x 120 in reel capacity with 2.5 in solid bar, 132 in overall length, 96 in width.

7,000 lb axle class, ST225/80 R16 tires, 2-5/16 in ball hitch, 7K drop-leg jack, LED lights, 3/8 in Grade 70 safety chains, approx. 750 lb trailer weight and 6,250 lb payload.

RR-44Heavy-duty regular trailer

Custom built heavy-duty regular trailer for equipment transport and HDD/construction support.

14,000 lb GVWR, two 7,000 lb axles, approx. 24 ft length, dual wheels with 8-lug pattern.

Pressure-treated wood floor, reinforced steel frame, electric brakes on both axles, DOT-approved LED lighting, 7-pin round connector. Rear gate/ramp setup confirmed per build.

Hydraulic Single Reel Trailer 14KHydraulic build

Hydraulic reel trailer configuration for heavier reel handling and jobsite loading.

14K class. Final reel size, lift setup, axle package, and build details confirmed before quote.

Hydraulic details, color, title, delivery, and registration requirements are confirmed per build.

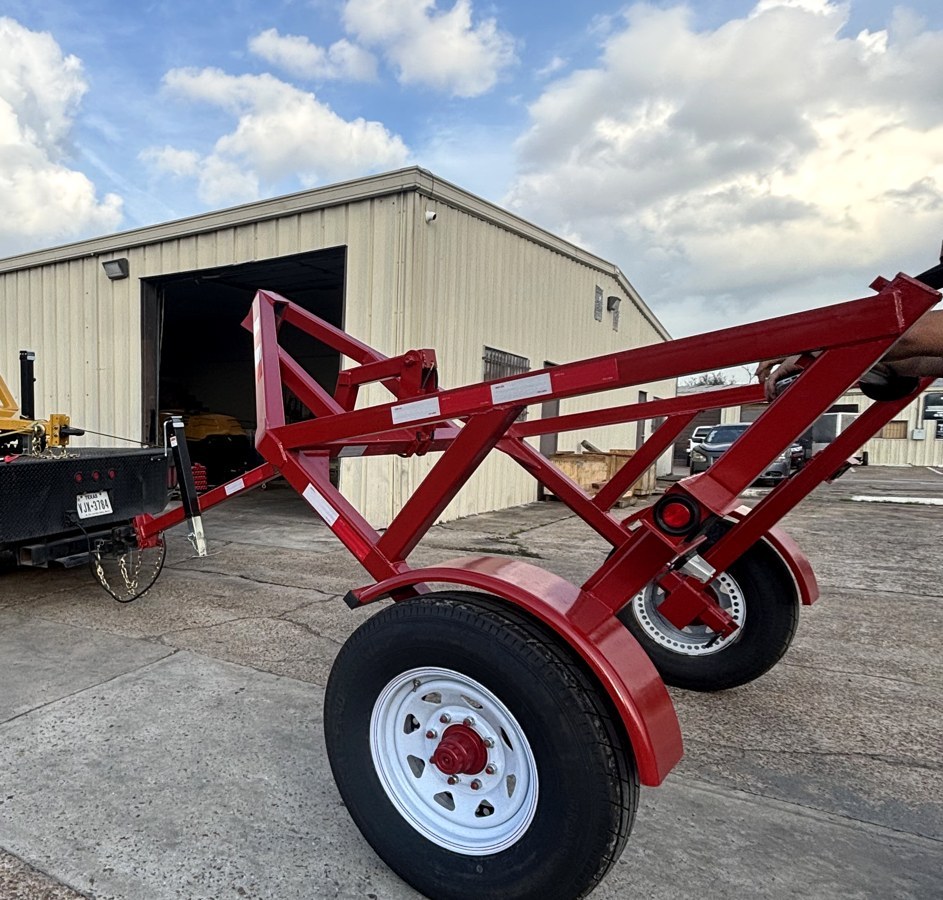

EZ LOAD 5KEZ LOAD build

Compact EZ LOAD reel trailer for lighter reel handling and jobsite transport.

5K class. Final reel size, axle package, and payload details confirmed before quote.

Real red EZ LOAD 5K photo shown on this page. Title, delivery, and registration requirements are confirmed per build.

Single / Double / Triple Reel BuildsBuilt to quote

Single, double, and triple reel trailer configurations for field crews and fleet work.

Available in 6K, 7K, and 14K classes, with manual or hydraulic options. Reel sizes up to 120 in x 60 in depending on configuration.

Reinforced steel construction, powder-coated finish, commercial/industrial use. Final axle package, color, title, delivery, and registration details are confirmed before quote.

Specs are used to guide quoting and customer fitment. Final build sheet should be confirmed before sale, title, delivery, or registration.

Hitch & Receiver2 inch hitch, hitch pins, lock pins, and towing connection parts. Load SecurementBinders, clevis hooks, latch hooks, and tie-down support parts. Trailer SupportWheel chocks and trailer jacks for safer parking and setup. Need Help?Ask us to confirm size, rating, towing setup, or jobsite fit.

Shop Trailer & Towing Parts

These are the current trailer and towing products available in the store. Confirm receiver size, pin diameter, working load, and trailer fit before ordering.

9 products loaded
