What is Horizontal Directional Drilling?
Horizontal Directional Drilling (HDD) is a trenchless method of installing underground infrastructure — such as pipes, conduits, and cables — along a prescribed bore path using a surface-launched drilling rig. Unlike traditional open-cut trenching, HDD causes minimal surface disruption, making it the preferred method for crossing roads, rivers, railways, and environmentally sensitive areas.
HDD technology evolved from the oil and gas industry and was first adapted for utility installation in the 1970s. Today, it is widely used for installing fiber optic cables, water lines, gas pipelines, electrical conduits, and sewer lines across the United States and worldwide.

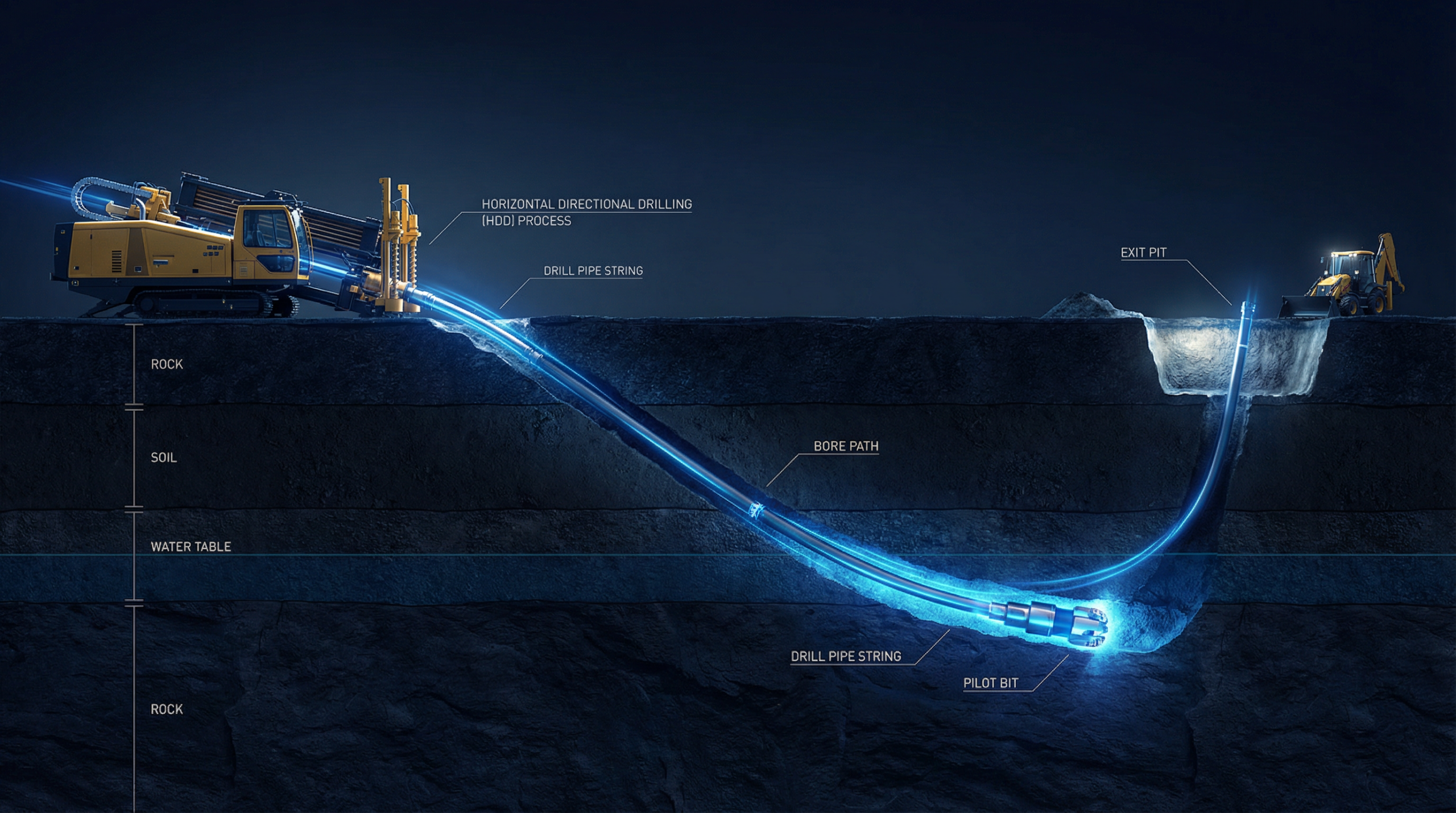

How Does HDD Work? The 3-Step Process
Step 1: The Pilot Bore
The process begins with drilling a small-diameter pilot bore along a pre-planned path. A drill rig pushes a drill string — made up of connected drill pipe sections — into the ground at a shallow entry angle. At the front of the drill string is a pilot bit (or drill head) that cuts through the soil. A sonde housing just behind the bit contains a radio transmitter that sends real-time position data to a locator operator walking the surface above. This allows the crew to steer the drill head precisely along the intended path, avoiding existing underground utilities and obstacles.
Step 2: The Pullback (Reaming)
Once the pilot bore exits at the intended endpoint, the drill string is disconnected and a backreamer is attached. The reamer is pulled back through the pilot bore while rotating, enlarging the hole to the required diameter. Depending on the final pipe size, multiple reaming passes may be needed, each with a progressively larger reamer. A swivel is always used between the reamer and the product pipe to prevent the pipe from rotating during pullback.
Step 3: Product Pipe Installation
On the final reaming pass, the product pipe (conduit, gas line, water main, etc.) is attached behind the reamer and pulled through the bore as the hole is enlarged. When the reamer exits at the entry pit, the installation is complete. The bore is then sealed and the entry and exit pits are backfilled.
The 5 Essential Components of Every HDD Job
| Component | Function |
|---|---|
| Drill Rig | Powers and controls the entire drilling operation. Common brands: Vermeer, Ditch Witch. |
| Drill Pipe | Connects the rig to the downhole tooling. Transmits rotation and thrust. Available in various lengths and connection types (FS200, FS700, 2.375″ API, etc.). |
| Pilot Bit / Drill Head | Cuts the initial pilot bore. Selected based on soil conditions. |
| Locating System | Tracks the position and depth of the drill head in real time. |
| Drilling Fluid (Mud) | Bentonite-based fluid that cools the tooling, stabilizes the bore wall, and carries cuttings to the surface. |
Why Choose HDD Over Open-Cut Trenching?
HDD offers significant advantages over traditional trenching methods. It eliminates the need to cut through pavement, landscaping, or environmentally sensitive areas. It reduces restoration costs, minimizes traffic disruption, and is often faster for crossings that would require extensive permits for open-cut work. For utility contractors, HDD also means less liability and lower overall project costs on complex crossings.
