Drill with Ease
The Mag X COR provides you with the core features you want and pairs it with the power you have come to know from our locators. Premium HDD locator experience in a simplified package with stand-up receiver and 4″ reflective LCD display.
Core Features
- Simplicity Paired with Power – Premium HDD locator experience in a simplified package
- Stand-up receiver with 4″ reflective LCD display
- Color 7″ Android-based touch screen drill display
- Tracking-on-the-Fly for fast, accurate, everyday locating
- Built-in Data Logging – Simplified one-touch logging integrated into the remote drill display
- Rodwise and chart views with the ability to edit and add utility crossings
- Easily emailed directly from the display and synced to the UMmaps web portal

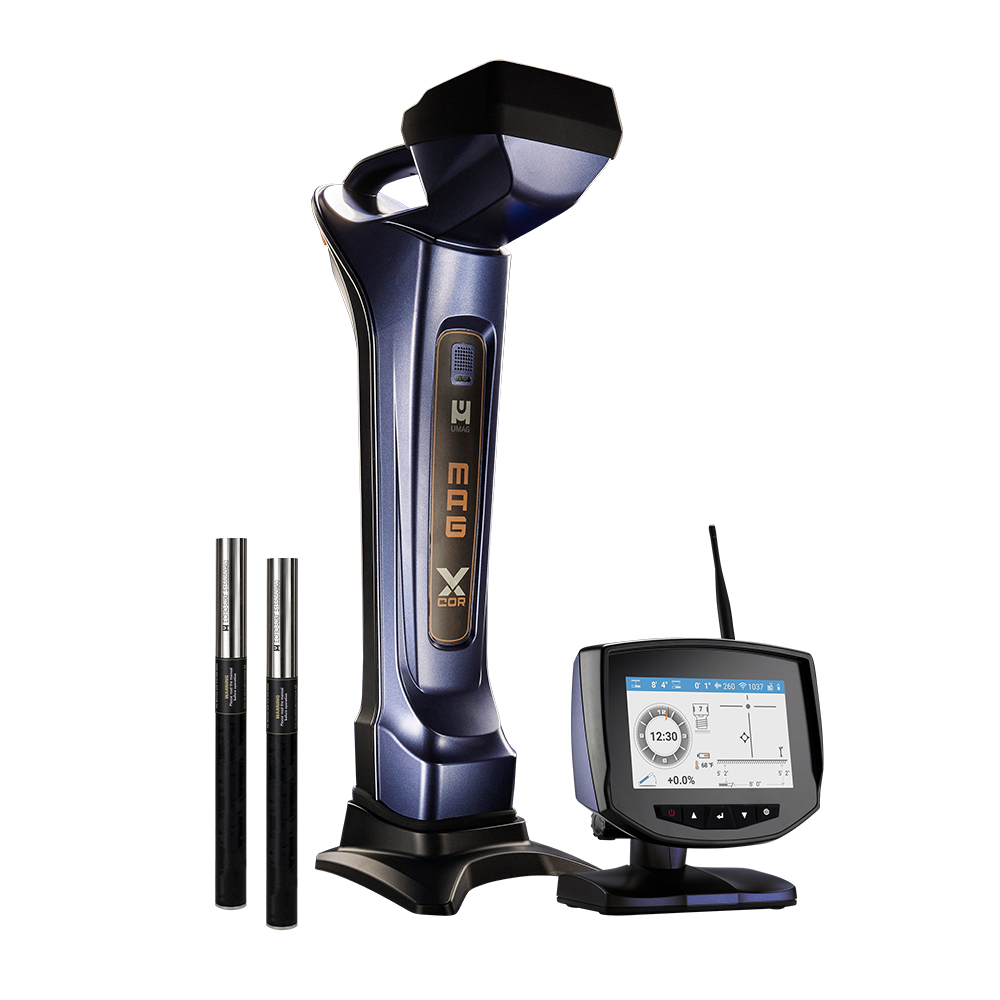

What’s Included

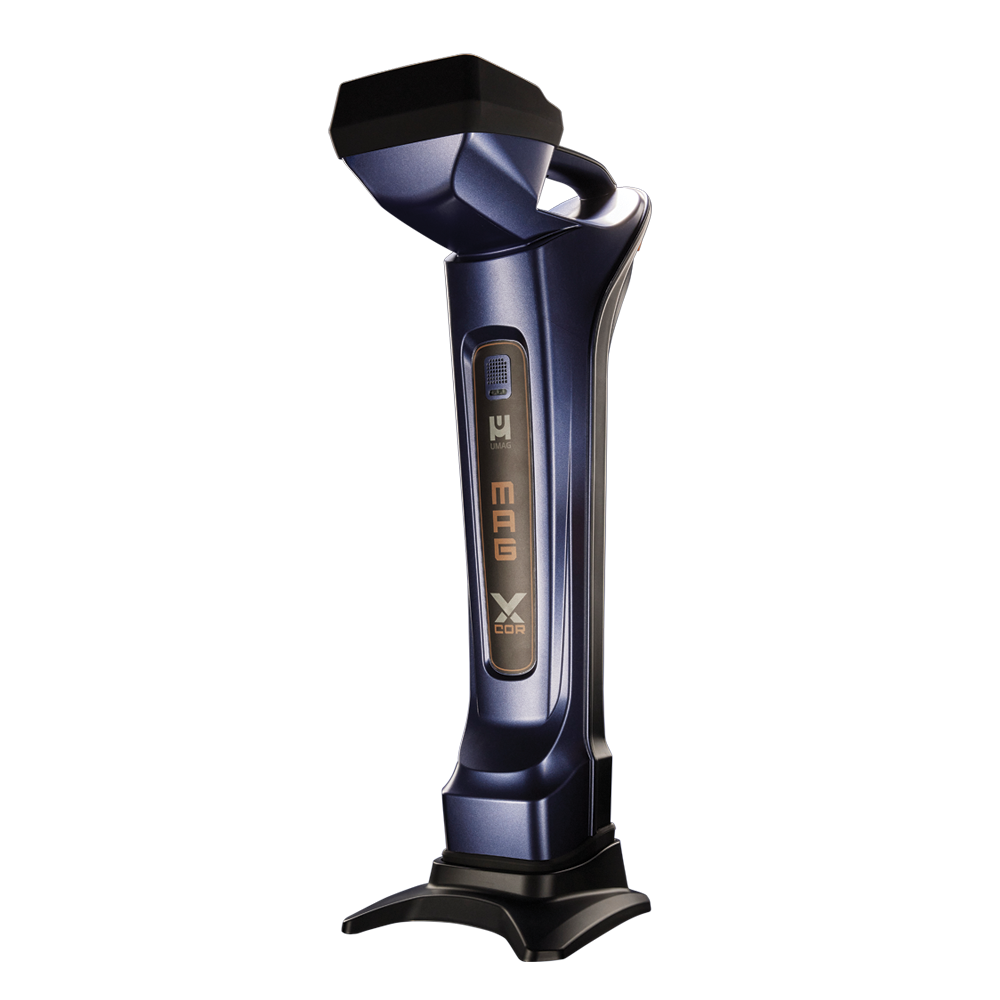

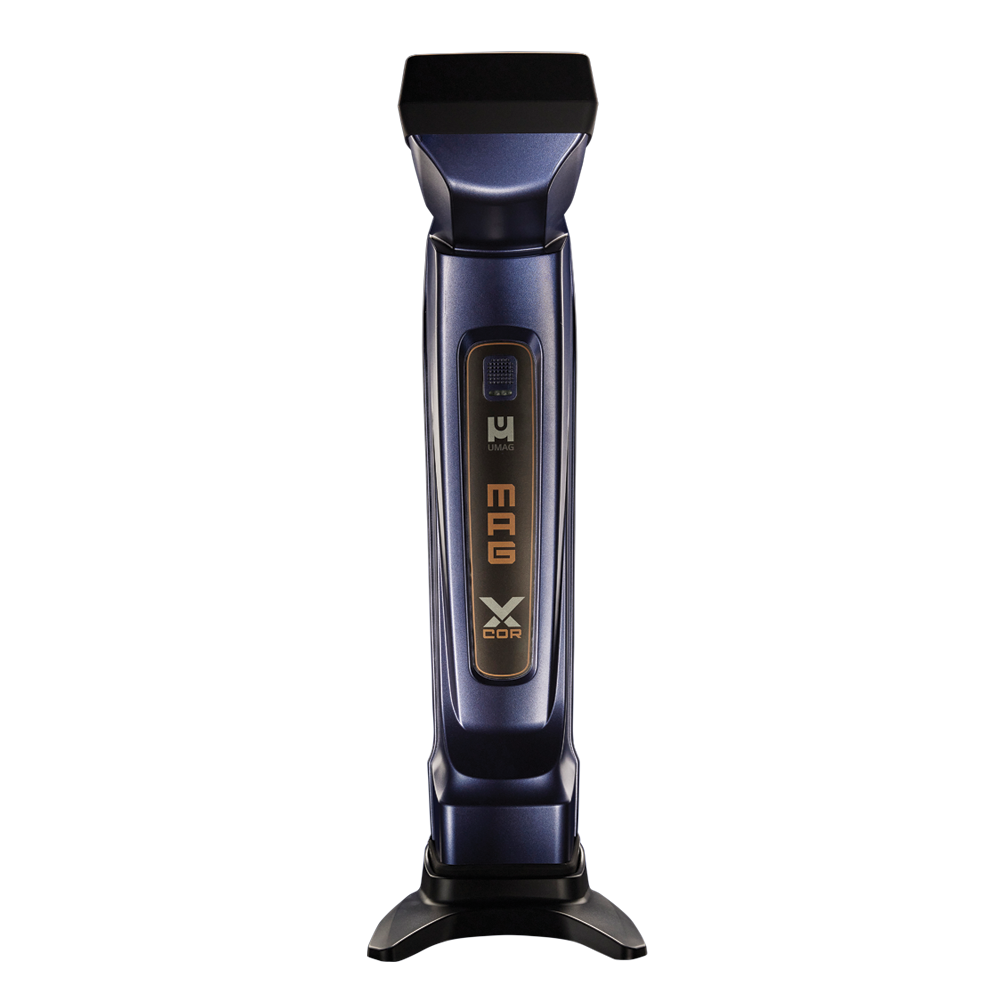

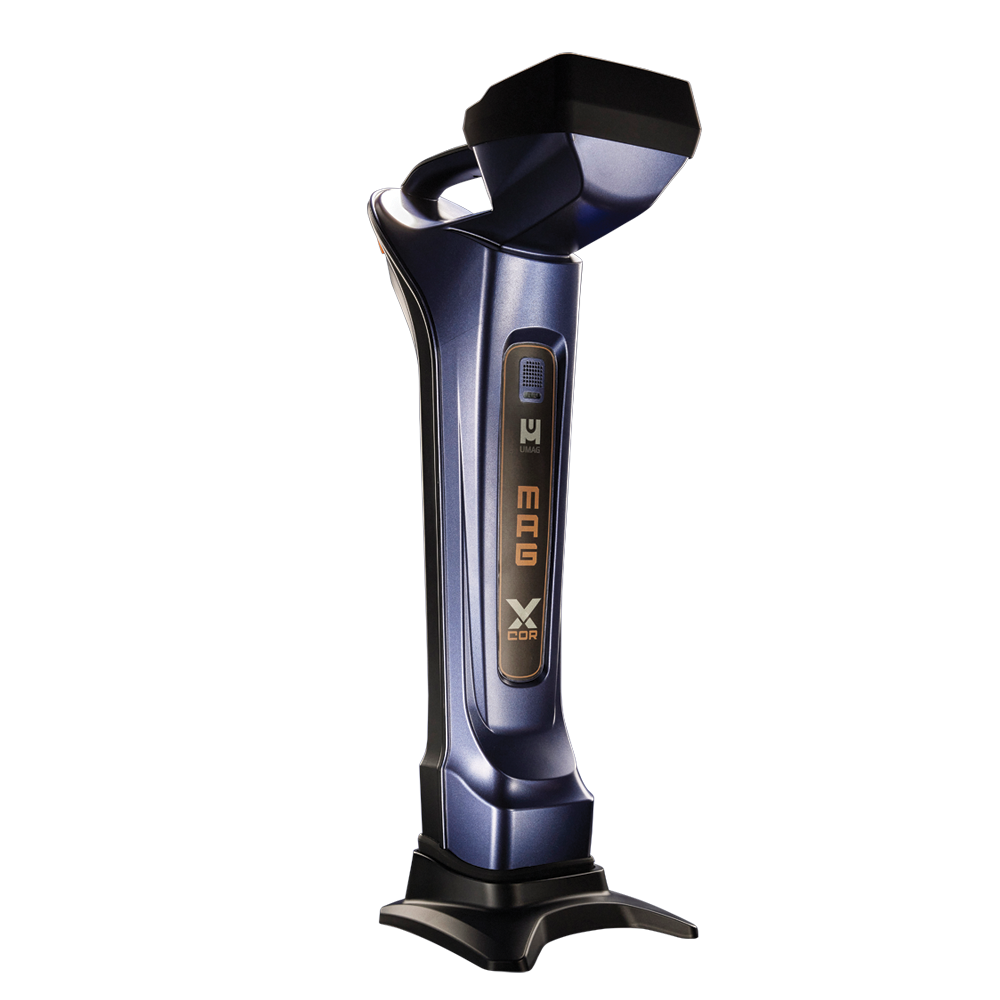

- 1 × Mag X COR Receiver
- 1 × Mag X Display
- 2 × Echo 50XF Transmitter
- 1 × Mag X/9 Hard Carrying Case
Specifications
| Weight | 8.5 lbs |
|---|---|
| Dimensions | 29 × 9 × 13 in |
| Antenna | Faraday Shielded 3D Antennas |
| Compatible Transmitter | Echo 50, Echo 50XF, Echo X-Mini, Echo ST |
| System Frequency | 16 Frequencies, .325kHz – 41kHz |
| Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Radio Frequency | 915 MHz (US) / 433MHz (EU) / 867 MHz (IN) |
| Telemetry | 4 Radio Channels with range up to 3,000 ft (900m) |
| Power | Rechargeable Lithium Battery 12.5V |
| Battery Life | 50 hours |
| Waterproof | IP65 |
