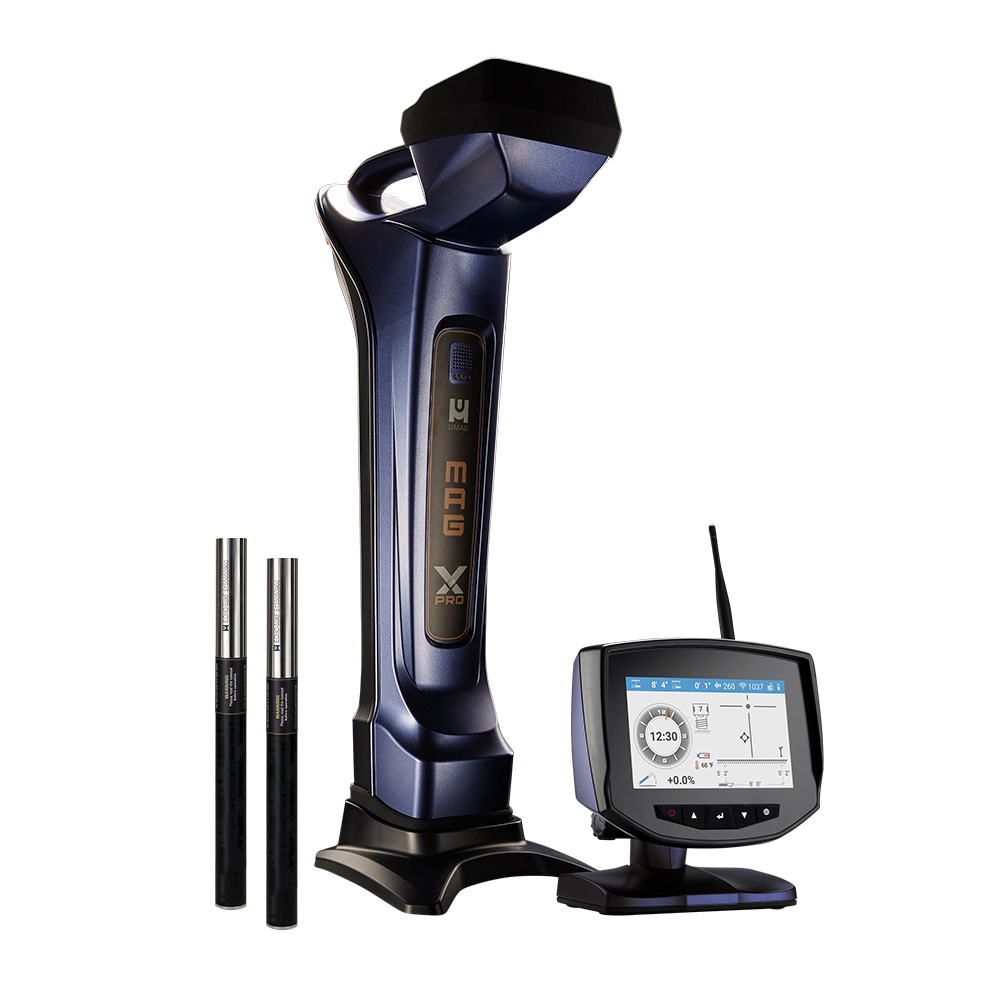

Professional Grade HDD Locating
The Mag X PRO is the professional’s choice for HDD locating. Built for demanding conditions with advanced features including Bore-to-Steering Mode, Automated Data Logging, and Rebar Frequencies for maximum versatility on any job site.
Pro Features
- Bore-to-Steering Mode – Real-time steering guidance for precision drilling
- Automated Data Logging – Automatic bore path recording without manual input
- Rebar Frequencies – Detect and avoid rebar in concrete structures
- Color 7″ Android touch screen drill display with advanced mapping
- Tracking-on-the-Fly with enhanced accuracy algorithms
- Full UMmaps integration for cloud-based bore path management
What’s Included
- 1 × Mag X PRO Receiver
- 1 × Mag X Display
- 2 × Echo 75XF Transmitter
- 1 × Mag X/9 Hard Carrying Case
Specifications
| Weight | 8.5 lbs |
|---|---|
| Dimensions | 29 × 9 × 13 in |
| Antenna | Faraday Shielded 3D Antennas |
| Compatible Transmitter | Echo 50, Echo 50XF, Echo 75XF, Echo X-Mini, Echo ST |
| System Frequency | 16 Frequencies, .325kHz – 41kHz |
| Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Radio Frequency | 915 MHz (US) / 433MHz (EU) / 867 MHz (IN) |
| Telemetry | 4 Radio Channels with range up to 3,000 ft (900m) |
| Power | Rechargeable Lithium Battery 12.5V |
| Battery Life | 50 hours |
| Waterproof | IP65 |
