HDD drill pipe designed for Vermeer D23x30 / D23x30 S3 / D24x40 / D24x40 S3. Sourced to meet the exact specifications required by your rig for reliable performance in demanding horizontal directional drilling operations.

Specifications

• Machine Compatibility: Vermeer D23x30 / D23x30 S3 / D24x40 / D24x40 S3
• Outer Diameter (OD): 2.375 in (6.03 cm)

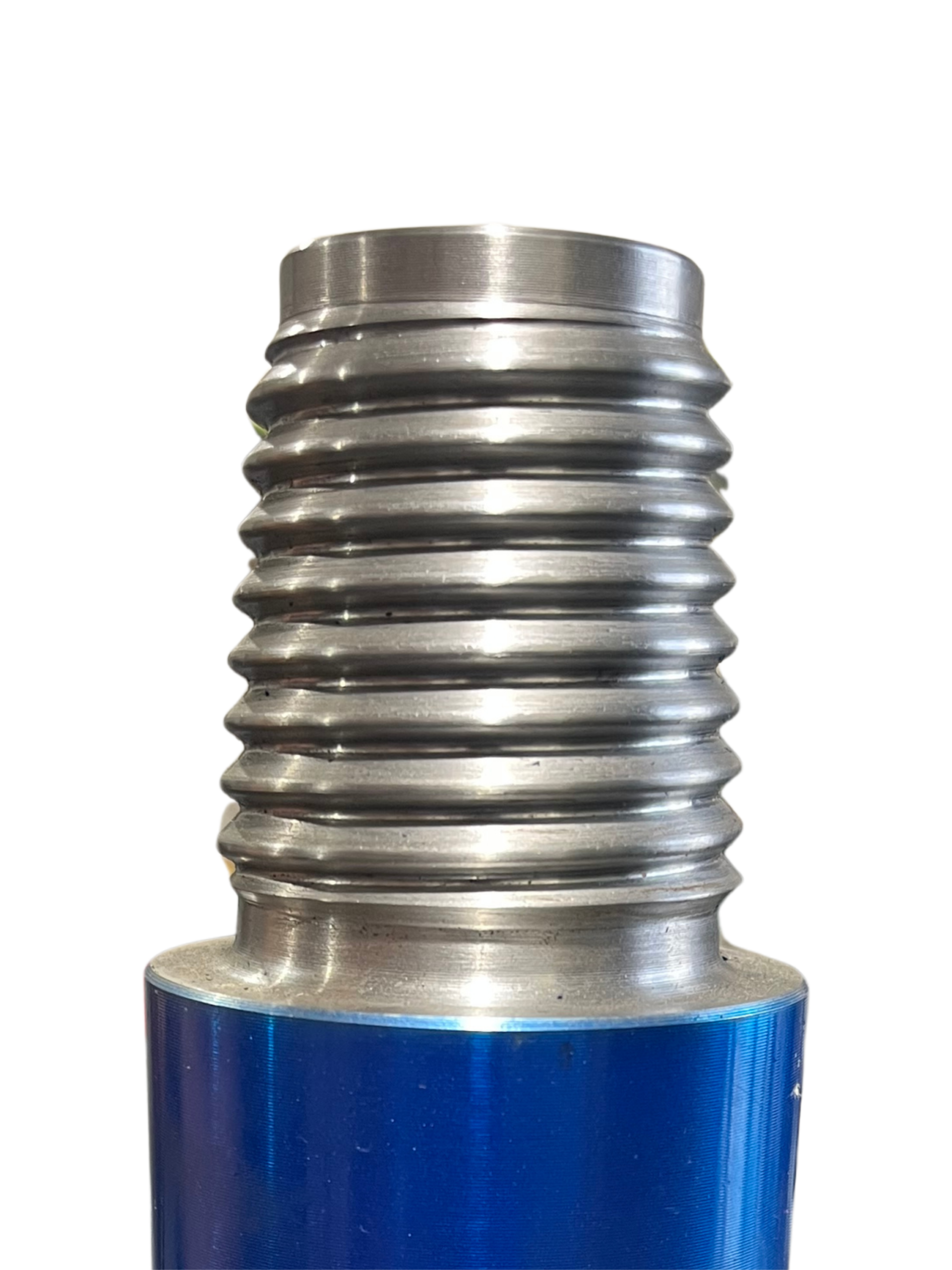

• Thread / Connection: FST #600
• Rod Length: 10 ft (3 m)
• Minimum Bend Radius: N/A
• Brand Compatibility: Vermeer
• Material: High-strength alloy steel
• Application: Horizontal Directional Drilling (HDD)

?? Compatibility Notes

FST #600 thread. Compatible with D23x30 S3 and D24x40 series. Confirm your exact model and serial number before ordering – sub saver lengths vary by serial number range.

?? What Is a Saver Sub?

A saver sub (also called a sub saver) is a sacrificial wear component that threads between the drive chuck and the drill pipe. It protects the drive chuck threads from wear during normal drilling operations. Always replace your saver sub when changing drill pipe – a worn saver sub will accelerate wear on your drive chuck and can cause costly damage. Saver subs should be checked regularly and replaced as needed.

? Not Sure Which Pipe to Order?

Contact us with your rig make, model, series, and serial number and we’ll confirm the correct thread and OD before you order. Ordering the wrong thread can result in damaged connections and downtime.
